There's less work to do this week than previous ones - We learn how to design a PCB board. We use Schematic to show the relationship about components and PCB diagram to show the real connection(how on the real boards components are connected). We will be making board in the coming week. The whole process was made very clear thanks to the foolproof video Anthony made(see below).
Practical Tricks When a trace is “blocked,” :
1. Add a via to jump to the other side, pass the obstacle, and via back.
2. 0 Ω jumpers: On 1-layer boards, place a 0 Ω resistor so one net “jumps” another.

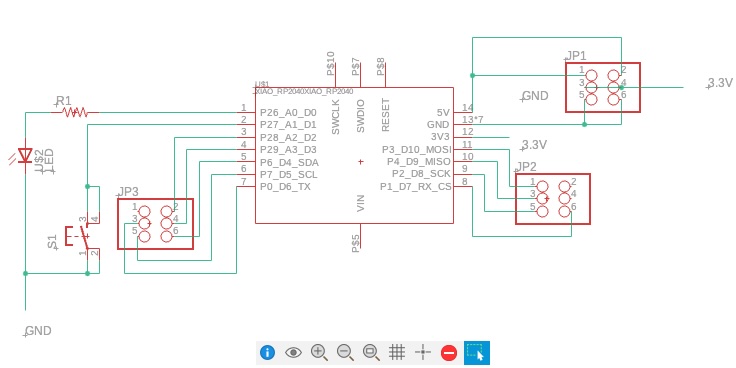

3. Temporary keepouts: Draw a route keepout corridor before place pours. After about an hour of following the video instructions, I successfully came up with something that I believe should work.

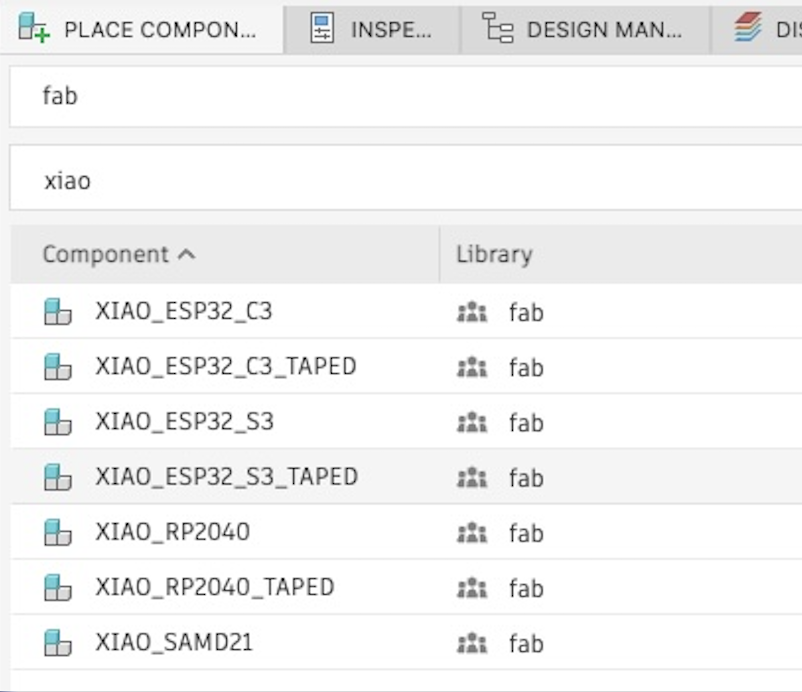

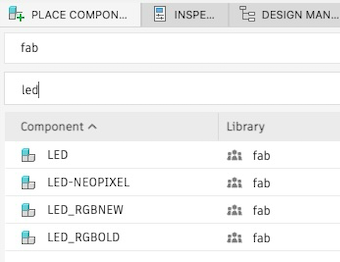

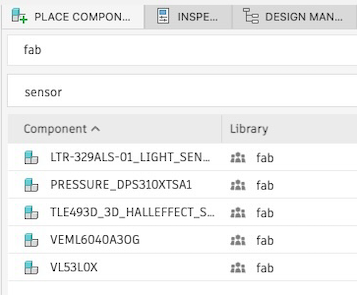

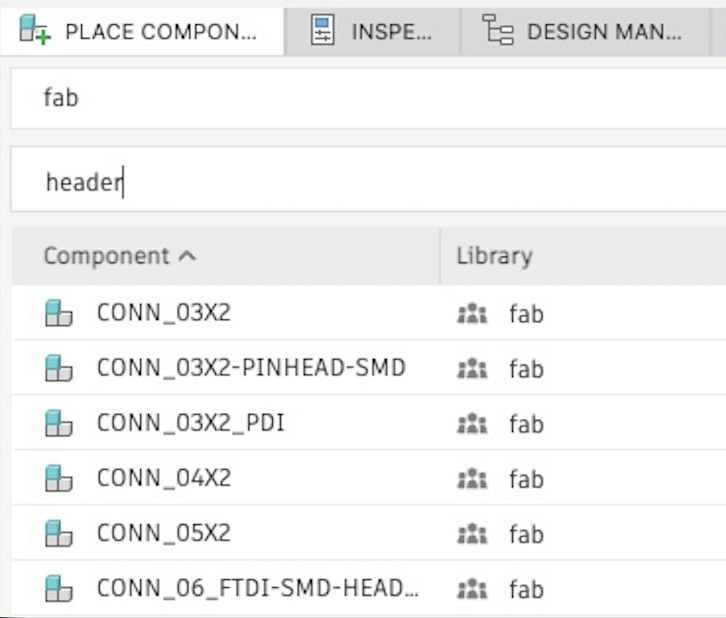

Some of the components that fab library offers
